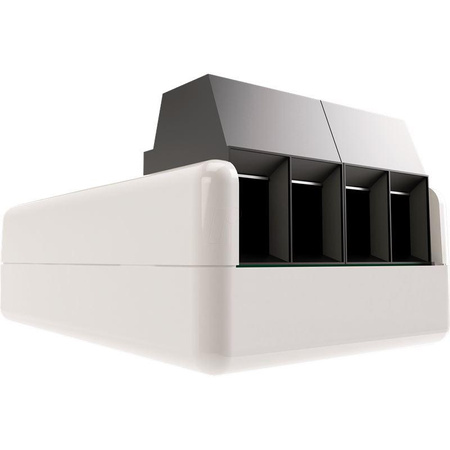

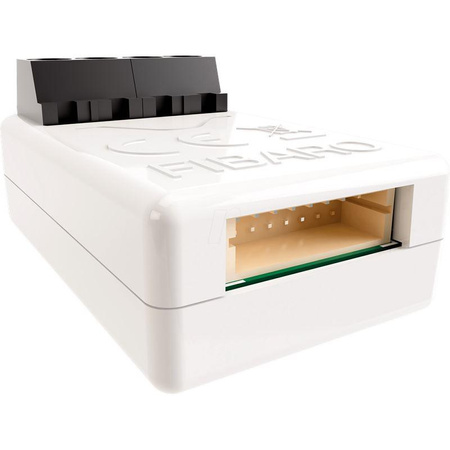

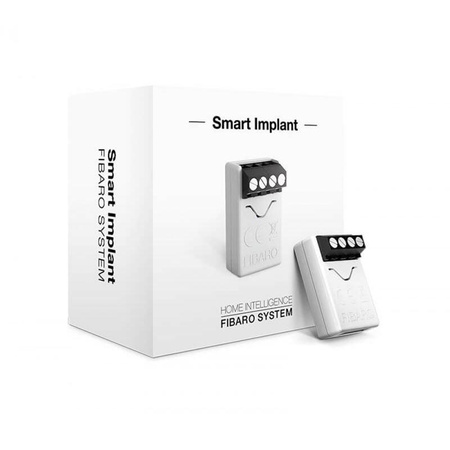

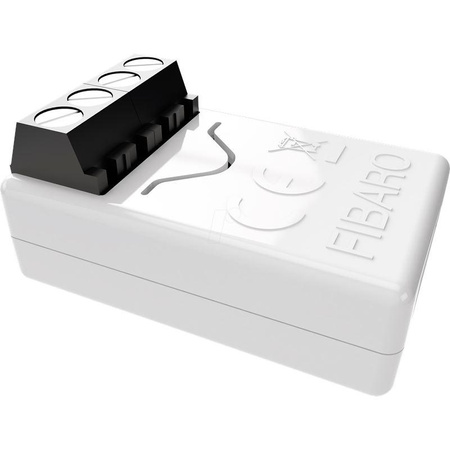

FIBARO Smart Implant - Z-Wave Smart Sensor
FIBARO Smart Implant - Z-Wave Smart Sensor
- An element of intelligence with great power
- Smart Implant is intelligence in a pill that, when applied to a device, extends its performance with intelligent functions. Smart Implant is currently the only such comprehensive solution on the market that chan
Smart Implant is intelligence in a nutshell, which, when applied to a device, extends its operation with intelligent functions. Smart Implant is currently the only such comprehensive solution on the market that turns ordinary devices into Fibaro smart home compatible devices.
- Wireless communication
- Z-Wave network extension
- Switching devices on and off
- Sensor data transmitter
- Safe to install
Powered by a safe low voltage with a wide range of 9-30V. Protection against the consequences of incorrect connection (such as incorrect polarity).
Neutral for the device
Does not interfere with the functioning of the device.
Transparent for alarm systems.
A device for special tasks
Smart Implant is the fruit of work on expanding the functionality of the Universal Binary Sensor, resulting from the analysis of the needs of installers and users of the FIBARO System. We have prepared a comprehensive Smart Implant to increase the possibilities of integrating non-intelligent devices with the FIBARO System and give Installers a solution to customers' installation problems.
Equipment control
- equipment control
- Up to 12 possible actions assigned to a scene
Sensor support
- two binary or 0-10V sensors
- built-in temperature sensor
- Up to 6 Dallas DS18B20 digital temperature sensors or one DHT-22 temperature and humidity sensor
Product features:
- Compatible with any Z-Wave or Z-Wave+ controller,
- It supports Z-Wave network security modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption,
- It works as a Z-Wave signal booster,
- Allows connection of sensors:
6 DS18B20 sensors,
1 DHT sensor,
2 analog 2-wire sensors,
2 3-wire analog sensors,
2 binary sensors.
- has a built-in temperature sensor.
Characteristics:
Supply voltage: 9-30V DC ±10%
Inputs:
2 0-10V, analog or binary inputs
1 serial 1-wire input (for DHT22 or DS18B20)
- Outputs:
2 potential-free outputs (for control of external systems)
Supported digital sensors 6 DS18B20 or 1 DHT22
Maximum current capacity of the outputs: 150mA
Maximum voltage at output contacts: 30V DC / 20V AC ±5%
Measuring range of the built-in temperature sensor: -55°C-126°C
Operating temperature: 0-40°C (32-104°F)
Radio protocol: Z-Wave (500 series chip)
- Radio frequency:
868.4 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4 or 919.8 MHz ANZ;
869.0 MHz RU;
- Transmission power: max. 7 dBm (EIRP)
- Range: up to 50m in open areas; up to 40m in buildings
- Dimensions (L. x width. x height.): 29 x 18 x 13 mm
