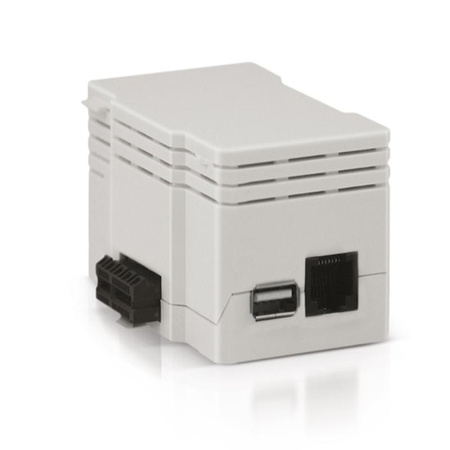

Zipato Zipabox Security Expansion Module
Zipato Zipabox Security Expansion Module
Zipato Zipabox Security Expansion Module
Zipato Zipabox Security Expansion Module

Zipato Zipabox Security Expansion Module

Add to shopping list
  • Connecting wired security sensors to the security module makes Zipabox one of the most advanced wired security panels on the market. Robust wired installation combined with advanced capabilities
SizePrice / pcs.DiscountAvailability and shippingBuy with pointsNumber
one size
105,72 € gross
List price:
Discount
Product available
Product availableShipment tomorrow (2 pcs. in the warehouse)
Buy with points
Total of selected products:
(Discount %)

0

gross / 1pcs.
/ 1pcs.
Before we process the order with this product, the prepayment in the amount of . Detailed information will be provided in the order summary, before its placement.
with
Cheap and fast delivery
14 days for easy returns
Safe shopping
After purchase you will receive pt..
Modern alarm panels are advanced versions of the basic system outlined above – they usually support multiple wired zones, lead acid battery backup (for power blackouts), external siren and advanced user interface (graphical display). Each wired zone can be used as in the simple alarm system outlined above – as a closed circuit with all switches wired in a loop. Zipabox Security module implements essential features of a wired alarm panel.

Features:
Zipabox Security Module supports adds wired alarm functionality to Zipabox. Security module adds support for:
· 6 wired zones
· 1 optically isolated 12V input
· 1 supervised wired bell/siren output
· 1 programmable output
· 1 supervised 12V auxiliary power supply for powered wired sensors
· 1 USB port
· 1 serial/UART port, user selectable between RS-232 mode and half-duplex RS-485 mode
· 1 lead acid battery charger (when using Security Module as a basis for an alarm system, the Backup Module cannot provide enough voltage to support wired sensors/siren and cannot be used to power Zipabox and modules in case of a power failure. Please use SLA (Sealed Lead Acid) battery for power backup with Security module)

Specification:
· Power supply: Zipabox
· Operating temperature: 0° ~ + 50° C
· Humidity: 0 ~ 95% RH
· AUX Power: 10-14 Vdc 800 mA
· Bell/Siren Out: 10-14 Vdc 600 mA
· Siren In: 8-14 Vdc, 20mA max
· PGM Out: 150mA max solid state relay with selectable active level

UNPACKING
Zipabox Security Expansion Module consists of:
1x Security Module
12x resistors of 5.6k? value
2x resistors of 1k? value
Brand
Zipato
Symbol
ZBM.SECURITY
Producer code
3858890730227
